Feed & Reclaim Tunnel Reclaim Conveyor

Keep a Steady Flow of Material

When your operation needs consistent feed from stockpiles to the processing plant, a tunnel reclaim conveyor keeps material moving without constant loader work. Positioned below the pile, it pulls material through adjustable gates or feeders to deliver a controlled flow onto your main conveyor belt.

Whether you’re managing surge capacity or feeding a dry plant, this system handles the heavy lifting quietly and reliably. With rugged construction and easy access for maintenance, a tunnel reclaim setup keeps your pile full on top and your belt full underneath.

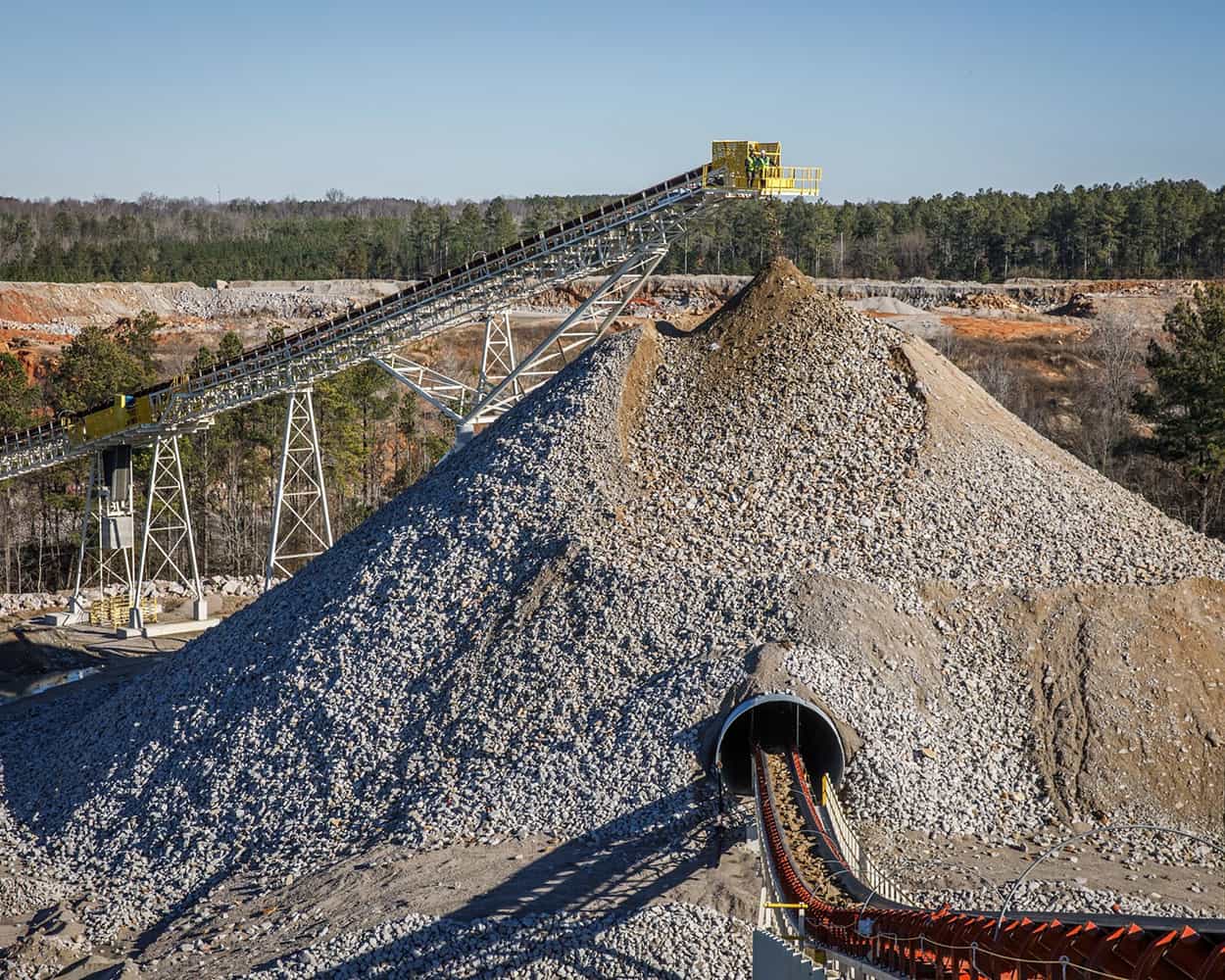

Surge Tunnel Reclaim Conveyor operating beneath large rock pile at South Carolina quarry site
vertical-divider-white-1
horizontal-divider-white-2

Images

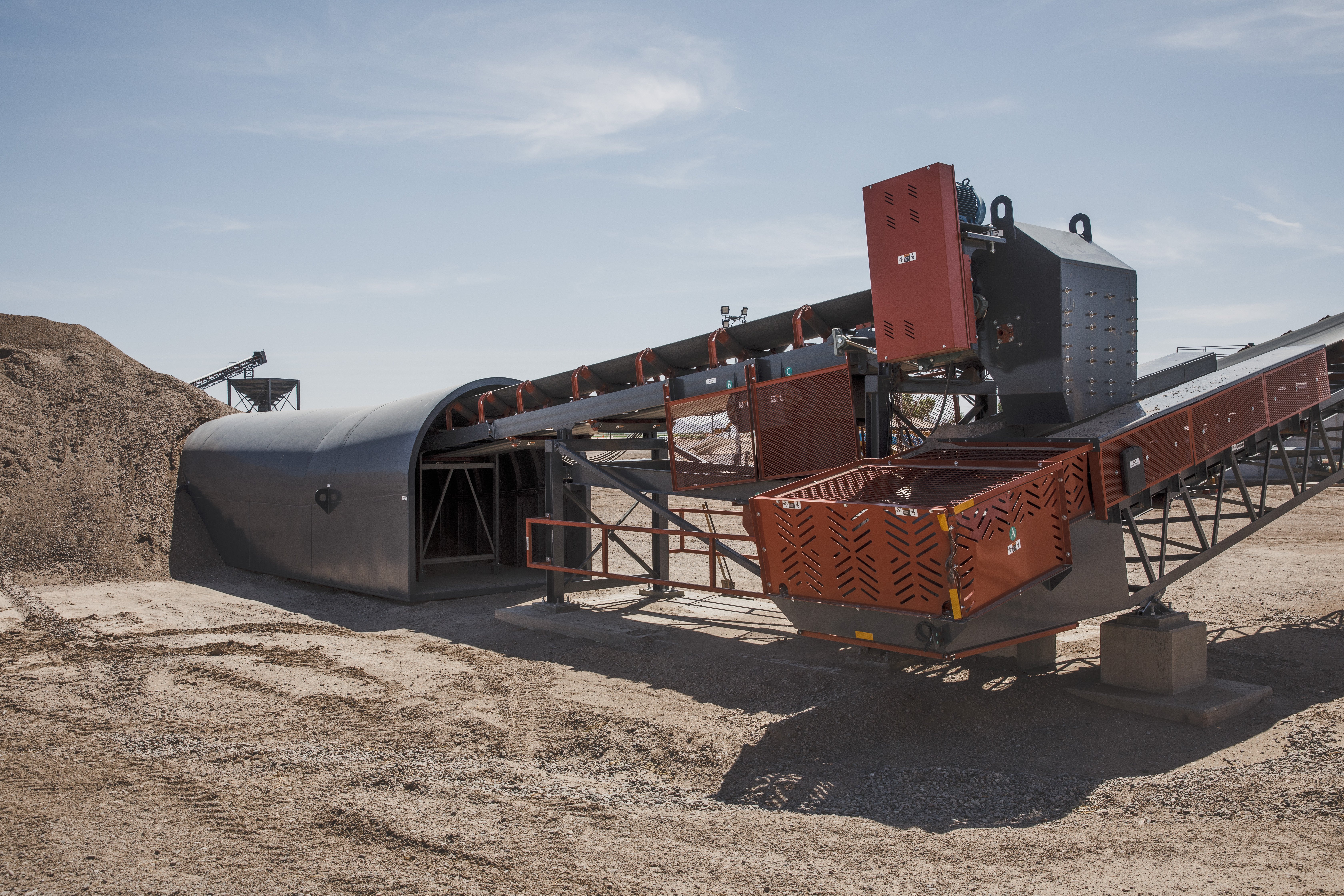

Wash Plant at Gila River Sand and Gravel_Blackwater AZ_5-22-2025_115

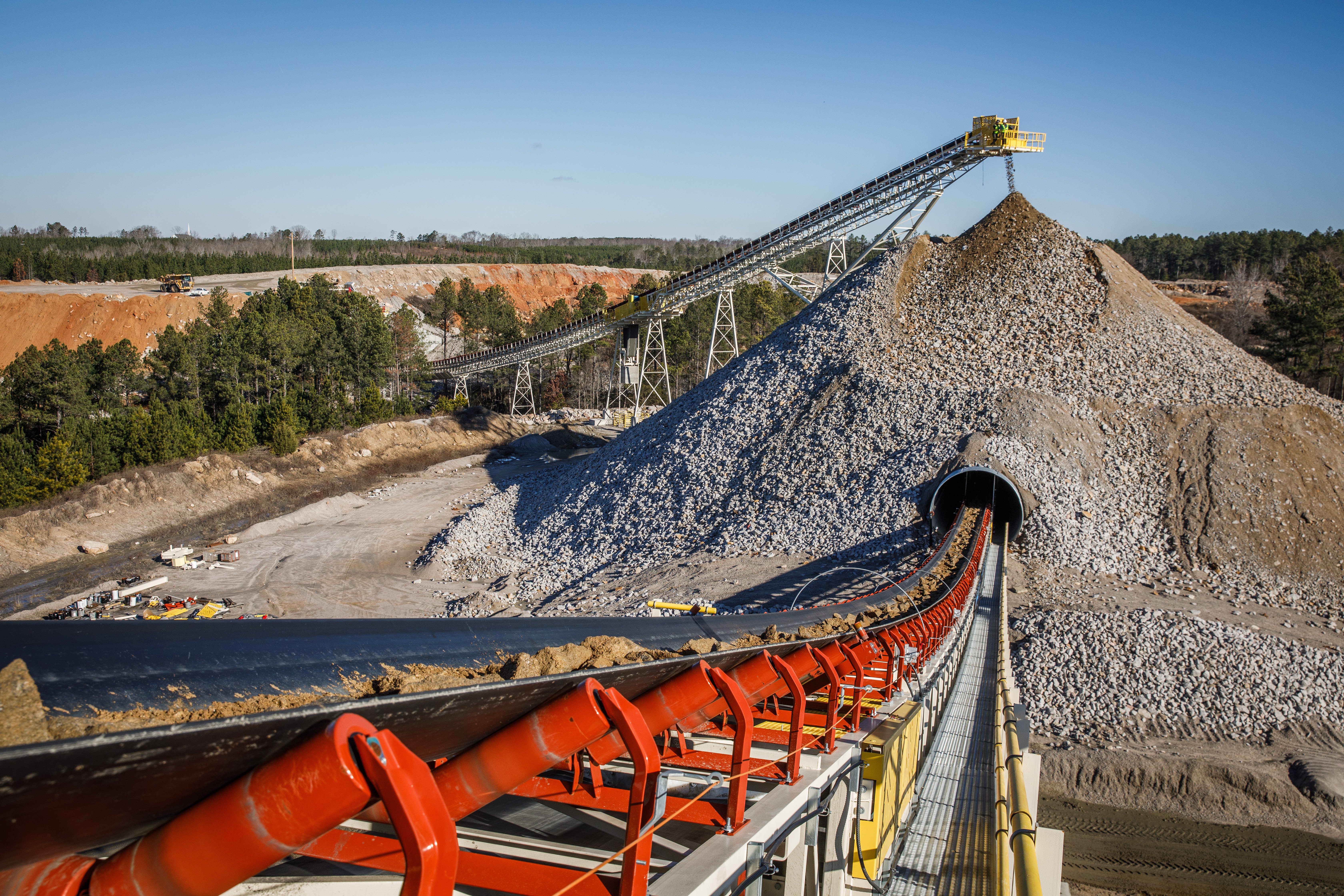

Buckhorn Quarry Jefferson SC 058

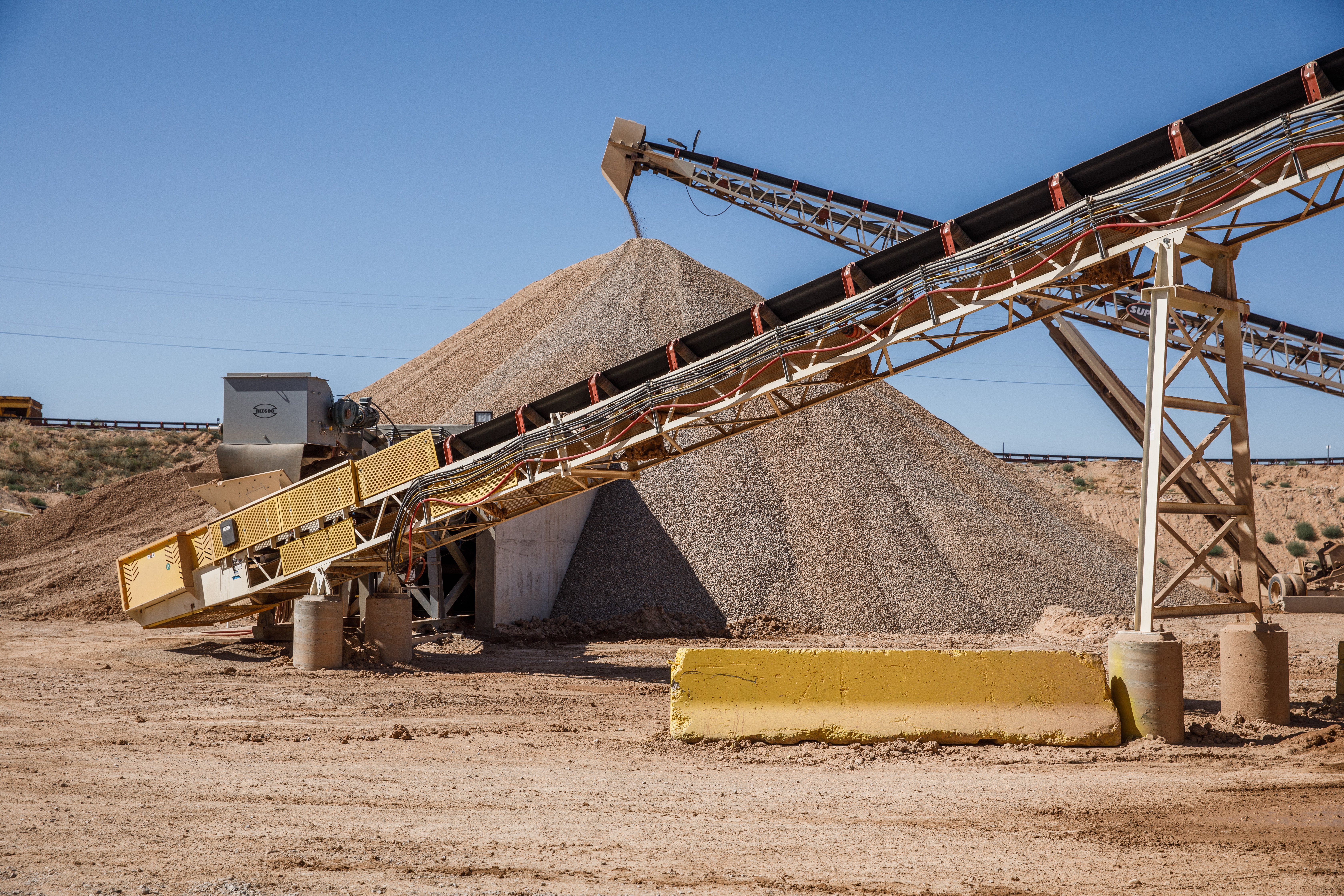

Tunnel reclaim conveyor at Granite Swan_Tuscon AZ_6-18-2024_058

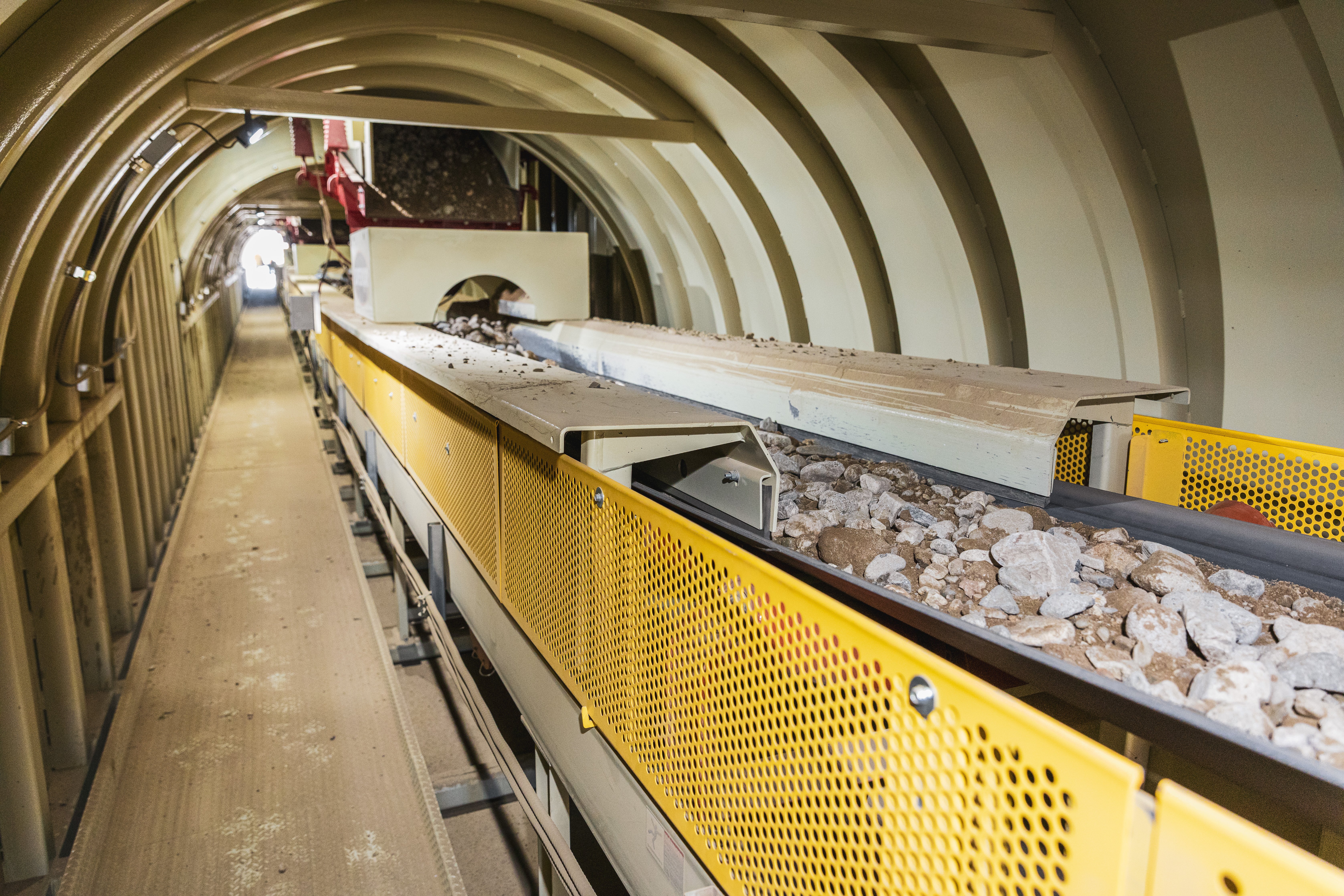

conveyor tunnel at Granite - Big Rock (08-2020)_27

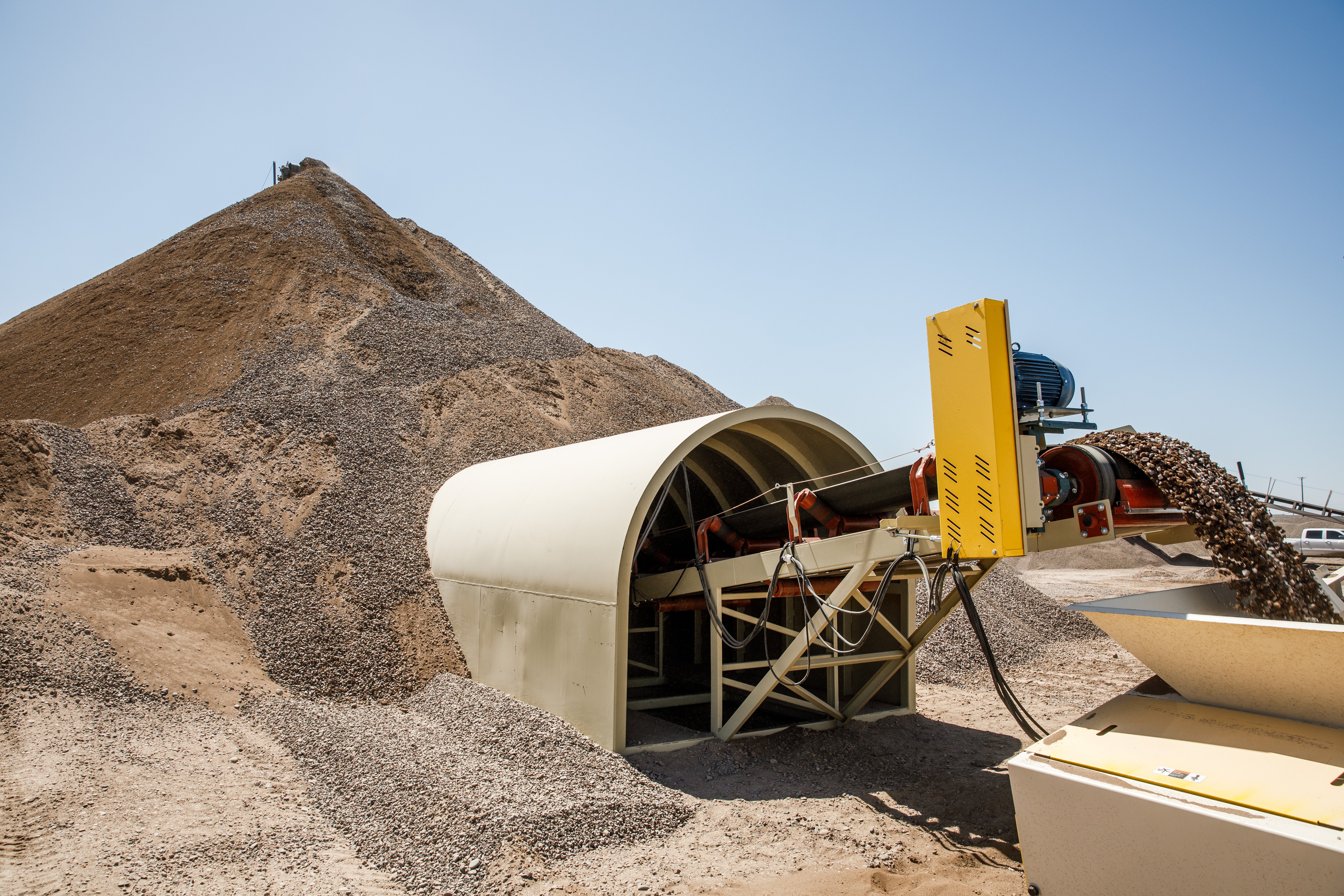

Arizona Materials_Phoenix AZ_2024-6-17_007

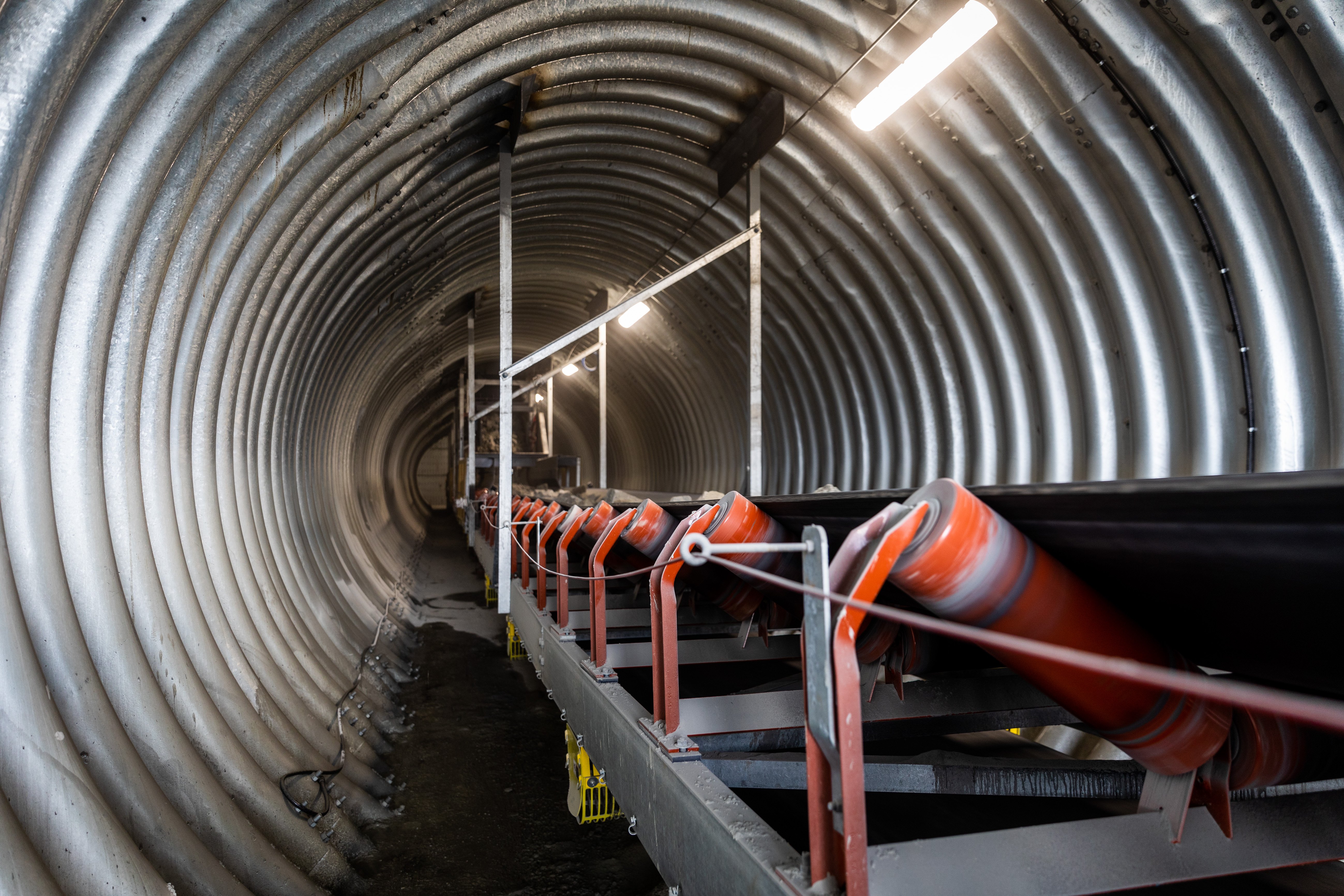

Tunnel at Mainland Construction Materials 2019-03_096

Real Stories, Proven Performance

Buckhorn Quarry Summit Materials conveyor loaded with aggregate
Featured Case Study

Superior Helps Summit Materials Expand Efficiently into New Markets

Location Jefferson, South Carolina
Industry Aggregates Crushed Stone

By entrusting Superior with construction management, Summit Materials could expand into new areas, such as concrete, while Superior’s expertise in equipment ensured a seamless flow from primary to secondary crushing.
