Bronze Bushing Design
Your cone crusher should do more than make spec. It should keep the entire circuit moving. The Patriot Cone Crusher is a bronze-bushing cone built for secondary and tertiary crushing in aggregate, recycling, and mining applications. Its high-pivot geometry creates an active feed opening that draws material into the chamber, while a broad model range lets producers match the machine to their feed, horsepower, and production goals.
The Patriot Cone is Superior’s most established cone platform, with years of field use in portable and stationary plants. Vantage® Automation helps operators hold production targets and recognize harmful conditions before they become bigger problems. Tramp relief, protected hydraulic seals, and counterclockwise rotation are designed to limit damage when the unexpected enters the chamber.
Backed by responsive dealers, strong parts availability, and factory engineering resources, the Patriot Cone gives producers a proven path to more uptime and a predictable cost per ton.
Expanded Horsepower
Select models offer additional horsepower (i.e. 300 to 350), providing more operating flexibility when feed conditions are less than ideal.
Vantage® Automation
Designed, developed, and supported by Superior for faster updates and North American-based technical support. No third parties!
Comprehensive Warranty
Leading coverage for major components helps protect your investment and provides added confidence in long-term ownership.
Advantages
Move More Material
High-pivot point geometry creates a larger, more active feed opening, helping draw material into the chamber while reducing plugs that interrupt production.
Engineered for Uptime
Fewer accumulators reduce maintenance, inverted hydraulic cylinders protect against contamination, and counterclockwise rotation prevents damage if clamping pressure is lost.
Lower Long-Term Repair Costs
A reconditionable head, replaceable seat liners, and a one-piece cast mainframe help reduce major repair costs over the life of the crusher.
Greater Application Flexibility
A universal crushing chamber adapts to a wide range of secondary and tertiary crushing duties to match changing feed conditions and production goals.
Shifting Cone Loyalties
York Building Products wasn’t looking for change, until they saw what the Patriot Cone could do. With improved throughput, quality shape, and faster adjustments, the switch from legacy crushers paid off fast.
Paired with Vantage® Automation, their team stays ahead of issues and dials in the product they need with minimal effort.
Where to BuyVideos

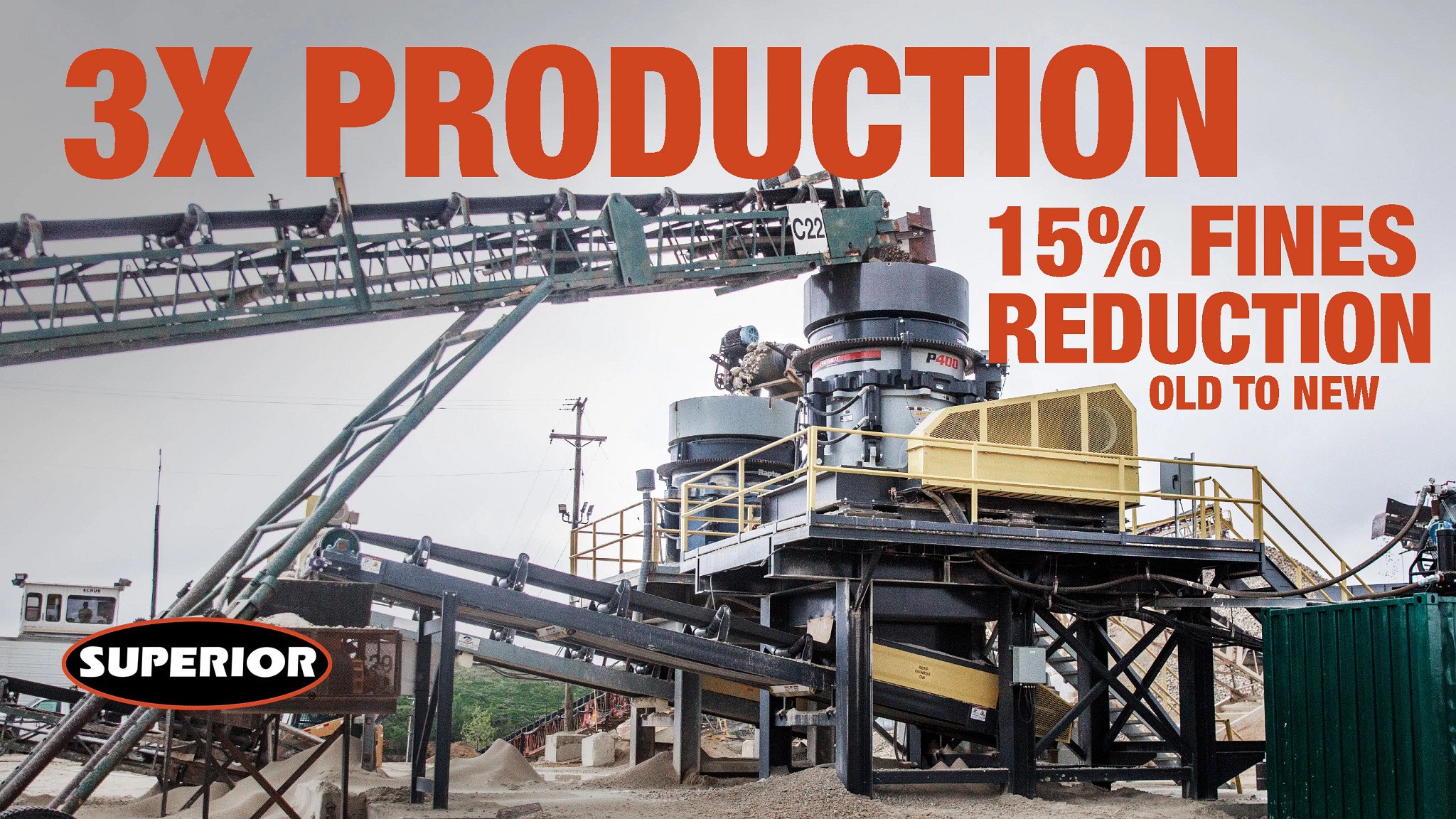

Beverly Materials shares how the installation of a P400 Patriot Cone dramatically improved their limestone production.

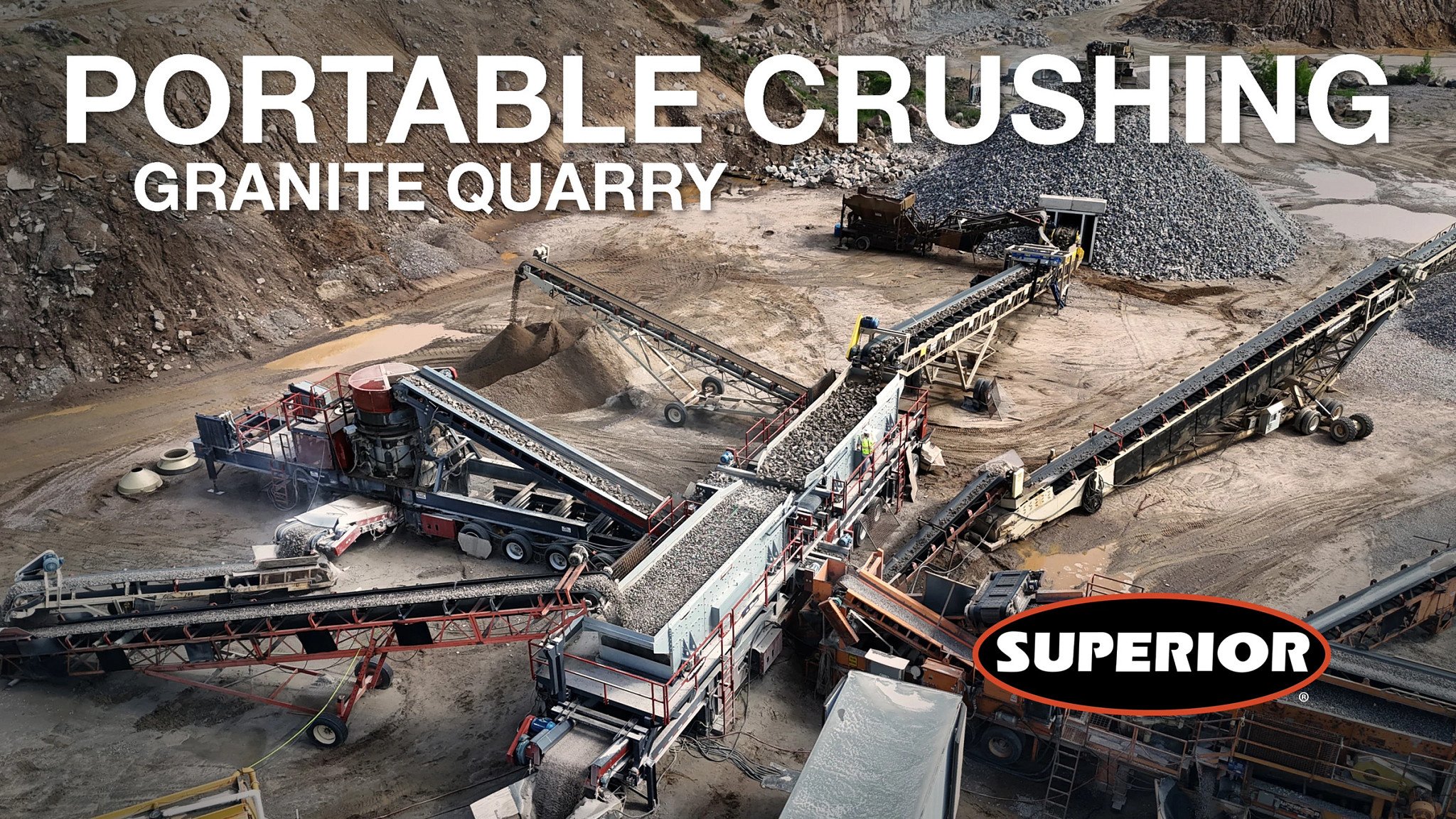

Pitlik & Wick shares how their compact crushing plant works in remote locations with demanding production schedules.

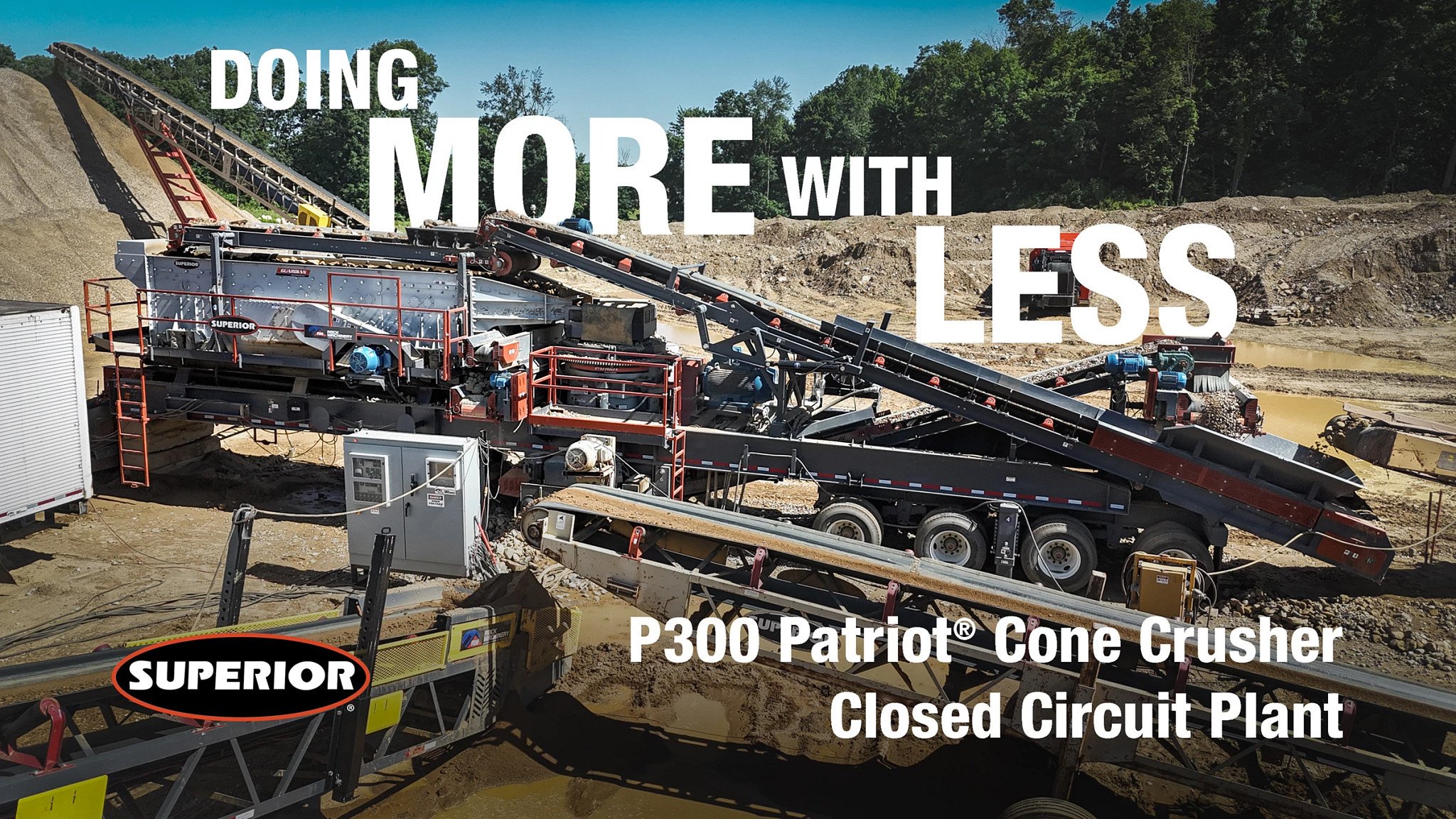

Iron River Sand & Gravel demonstrates how their closed circuit plant delivers operational flexibility and simplified management.
Images
Patriot Cone Crusher Models & Specifications
General Specifications Specifications
| Model | Head Diameter | Weight | Recommended HP | Max Feed Opening | CSS | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | kg | lbs | kW | hp | mm | in | mm | in | |
| P200 | 970 | 38” | 8,840 | 19,485 | 150 | 200 | 236 | 9.3” | 10 - 51 | 3/8 - 2” |
| P300 | 1,117 | 44” | 16,030 | 35,340 | 225-260* | 300-350* | 270 | 10.6” | 10 - 51 | 3/8 - 2” |
| P400 | 1,320 | 52” | 23,480 | 51,771 | 300-335* | 400-450* | 310 | 12.2” | 10 - 51 | 3/8 - 2” |
| P500 | 1,500 | 59” | 33,570 | 74,000 | 375-450* | 500-600* | 343 | 13.5” | 10 - 51 | 3/8 - 2” |
| P600 | 1,500 | 59” | 51,110 | 112,685 | 450 | 600 | 356 | 14” | 10 - 51 | 3/8 - 2” |
Percent Passing for a Given Closed Side Setting
| Product Size | 3/8” | 1/2” | 5/8” | 3/4” | 7/8” | 1” | 1-1/4” | 1-1/2” | 2” | |
|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | 10 mm | 13 mm | 16 mm | 19 mm | 22 mm | 25 mm | 31 mm | 38 mm | 50 mm |
| 4” | 100.0 | 100.0 | ||||||||
| 3” | 75.0 | 100.0 | 96.0 | |||||||
| 2-1/2” | 63.0 | 100.0 | 97.0 | 89.0 | ||||||
| 2” | 50.0 | 100.0 | 98.0 | 90.0 | 71.0 | |||||
| 1-3/4” | 45.0 | 100.0 | 99.0 | 95.0 | 83.0 | 60.0 | ||||
| 1-1/2” | 38.0 | 100.0 | 99.0 | 96.0 | 88.0 | 72.0 | 49.0 | |||
| 1-1/4” | 31.0 | 100.0 | 99.0 | 96.0 | 90.0 | 74.0 | 55.0 | 39.0 | ||
| 1” | 25.0 | 100.0 | 99.0 | 95.0 | 86.0 | 76.0 | 56.0 | 41.0 | 30.0 | |
| 7/8” | 22.0 | 100.0 | 99.0 | 96.0 | 89.0 | 78.0 | 66.0 | 46.0 | 35.0 | 26.0 |
| 3/4” | 19.0 | 99.0 | 96.0 | 90.0 | 79.0 | 68.0 | 57.0 | 38.0 | 30.0 | 22.0 |
| 5/8” | 16.0 | 97.0 | 91.0 | 80.0 | 69.0 | 56.0 | 46.0 | 31.0 | 25.0 | 18.0 |
| 1/2” | 13.0 | 92.0 | 81.0 | 69.0 | 57.0 | 45.0 | 36.0 | 26.0 | 20.0 | 15.0 |
| 3/8” | 10.0 | 81.0 | 66.0 | 54.0 | 45.0 | 34.0 | 28.0 | 20.0 | 15.0 | 11.5 |
| 1/4” | 6.0 | 58.0 | 45.0 | 36.0 | 30.0 | 24.0 | 19.0 | 14.0 | 11.0 | 8.0 |
| 4M | 5.0 | 45.0 | 35.0 | 28.0 | 23.0 | 18.0 | 15.0 | 11.0 | 9.0 | 6.0 |
| 6M | 3.0 | 33.0 | 26.0 | 21.0 | 17.0 | 13.0 | 11.0 | 8.0 | 6.0 | 4.0 |
| (8M) | 2.0 | 26.0 | 20.0 | 16.0 | 13.0 | 10.0 | 8.0 | 5.0 | 4.0 | 2.0 |
*Cones manufactured as of 2027 are equipped to handle up to max HP.
Feed size is determined by measuring the longest one-way dimension of the material sample.
Projected crusher gradings and capacities are based on a material having a work index of 12-14, with a bulk density of 100 lbs/ft3 (1.6 mt/m3).
